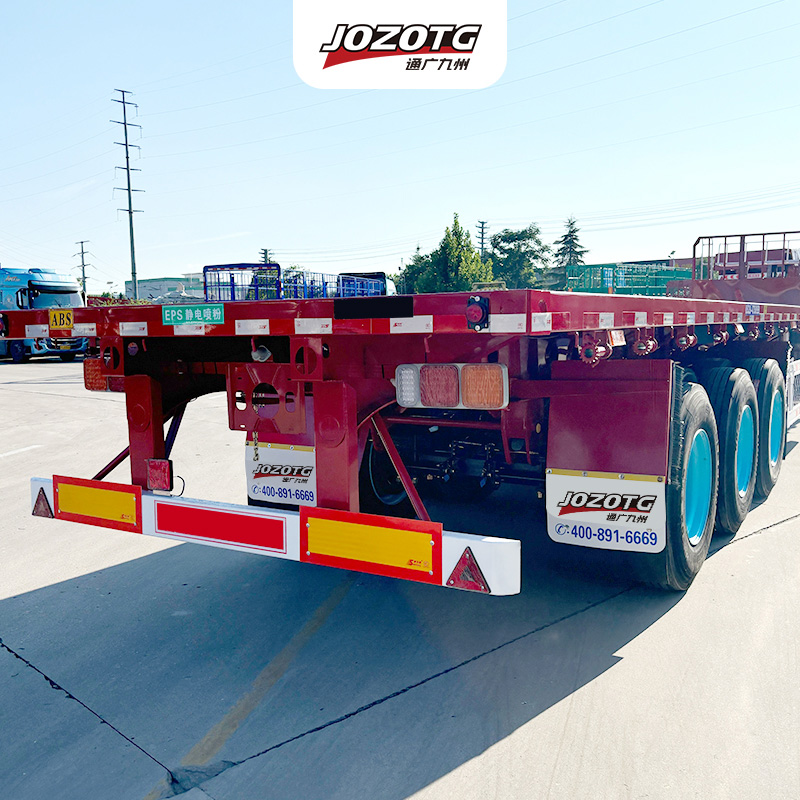

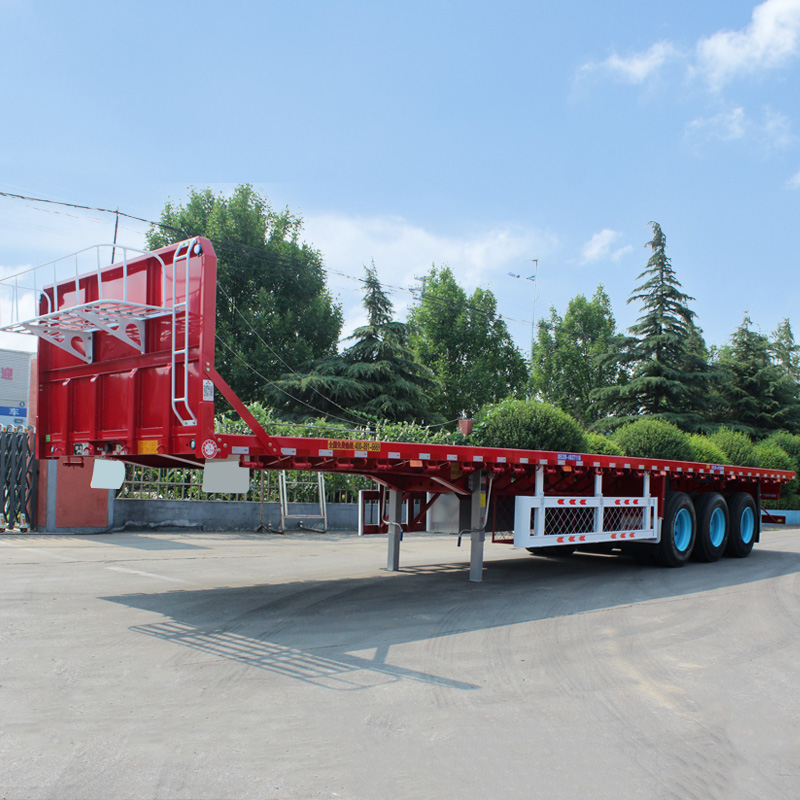

3 Axle 53ft Flatbed Trailer
The design of 3 axle 53ft flatbed trailer makes loading and unloading cargo extremely convenient. The flat design of the 3 axle 53ft flatbed trailer provides an open loading platform for quick loading and unloading of goods. The open design of 3 axle 53ft flatbed trailer makes the use of cranes or other lifting equipment more convenient and improves the flexibility of loading and unloading. In addition, the tablet design of 3 axle 53ft flatbed trailer also facilitates the use of forklifts for loading and unloading operations, reducing manual labor intensity and improving the safety of loading and unloading operations.
The three-axis 3 axle 53ft flatbed semi trailer is made of high-strength materials to ensure a sturdy and durable vehicle structure. This sturdy structure of 3 axle 53ft flatbed semi trailer can withstand long-term heavy transportation, extending the service life of the vehicle. The framework of the 3 axle 53ft flatbed semi trailer has been carefully designed to ensure stability even under maximum load. In addition, the sturdy structure of the 3 axle flatbed trailer also helps reduce maintenance costs, as a sturdy structure of 3 axle flatbed trailer means less maintenance and longer service life.
Parameter:
Overall (L*W*H) | 12500*2500*1530mm |
Frame | Material:High strength low alloy Q345 steel |
Main beam | Main beam height:500 mm |
Floor | 3 mm checkered plate |
Side beam: | 16# channel steel |
Axle | 3*13 tons FUWA axles |
Tire | 12R22.5 Tire,12 pcs |
Rim | 900*22.5, 12 pcs |
Braking System | 6 Double-chamber , Duel Line Brake System |
Suspension | Mechanical spring suspension |
King Pin | 2" (50#) or 3.5"(90#) high tensile steel bolted type |
Landing Leg | 28T landing leg |
Twist Lock | 12 pcs |
Accessories | 1 waterproof tool box with stainless lock,2 spare tire carrier |
Color | Any color will be available |
Packing detail | Container ships |

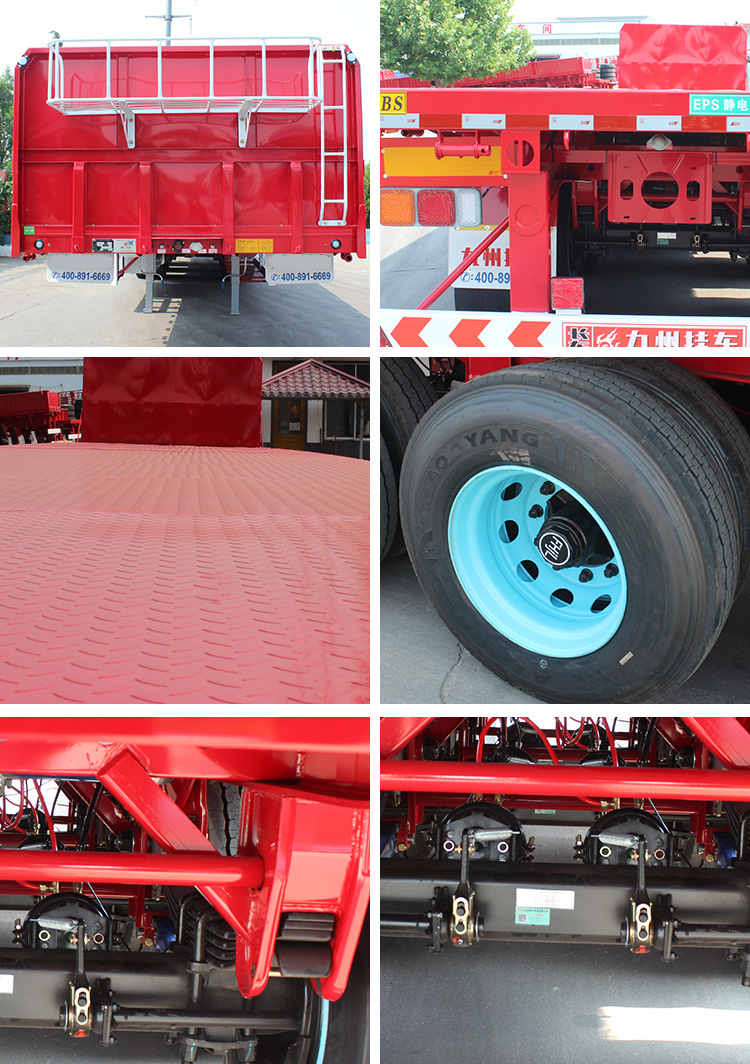

Detailed Pictures:
FAQ
What are the main uses of a flatbed semi-trailer?
Flatbed semi-trailers are suitable for transporting various large equipment, heavy machinery, steel, building materials, and other goods. Their flat cargo deck design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a flatbed semi-trailer?
Our flatbed semi-trailers are made of high-strength steel with a maximum load capacity of up to 60 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a flatbed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The cargo deck surface is treated with anti-slip processing to ensure the stability and safety of goods during transportation.
Is a flatbed semi-trailer suitable for long-distance transportation?
Yes, our flatbed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the flatbed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
