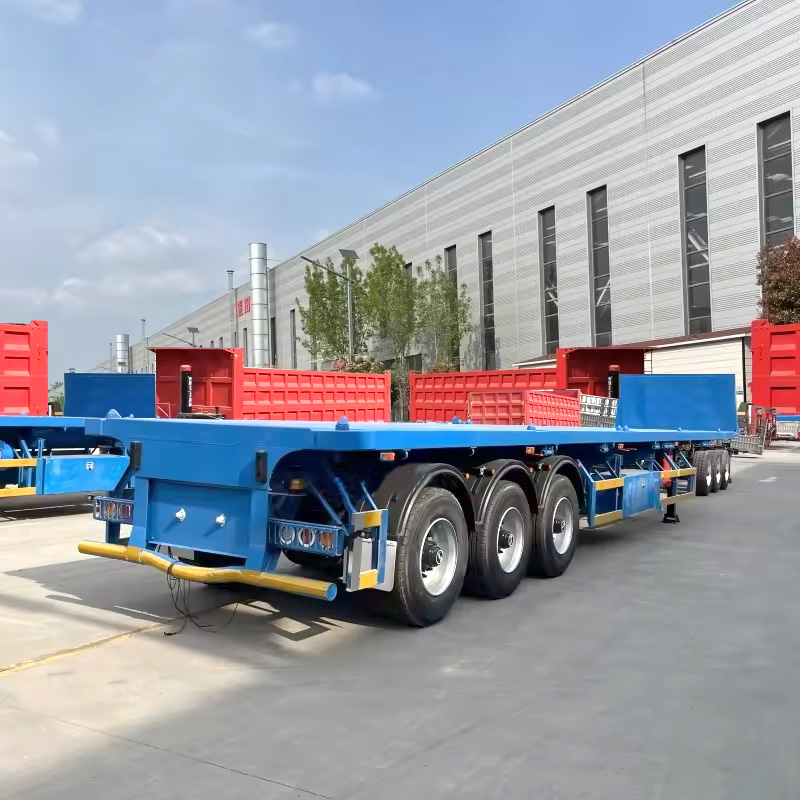

60 Ton Tri Axle Flatbed Semi Trailer
The three-axis 60 ton payload tri-axle flatbed trailer provides a spacious load-bearing platform, suitable for loading larger cargo volumes. Both standard containers and non-standard sized goods can be easily loaded and transported. The spacious carrying platform of 60 ton payload tri-axle flatbed trailer can not only accommodate more goods, but can also be adjusted as needed to accommodate goods of different sizes. This design of 60 ton payload tri-axle flatbed trailer allows the three axle flatbed trailer to adapt to various transportation needs, whether it is transporting standard containers or non-standard goods.
The Tri axle flatbed semi trailer can be customized according to the specific needs of the customer, such as adding special reinforcement and installing additional support structure. This customized service meets the personalized needs of customers. For example, tri axle flatbed semi trailer can ensure safe transportation of specific types of goods by increasing special reinforcement measures. This flexibility of Tri axle flatbed semi trailer is very useful to meet the personalized needs of different customers.
Parameter:
Overall (L*W*H) | 12500*2500*1530mm |
Frame | Material:High strength low alloy Q345 steel |
Main beam | Main beam height:500 mm |
Floor | 3 mm checkered plate |
Side beam: | 16# channel steel |
Axle | 3*13 tons FUWA axles |
Tire | 12R22.5 Tire,12 pcs |
Rim | 900*22.5, 12 pcs |
Braking System | 6 Double-chamber , Duel Line Brake System |
Suspension | Mechanical spring suspension |
King Pin | 2" (50#) or 3.5"(90#) high tensile steel bolted type |
Landing Leg | 28T landing leg |
Twist Lock | 12 pcs |
Accessories | 1 waterproof tool box with stainless lock,2 spare tire carrier |
Color | Any color will be available |
Packing detail | Container ships |

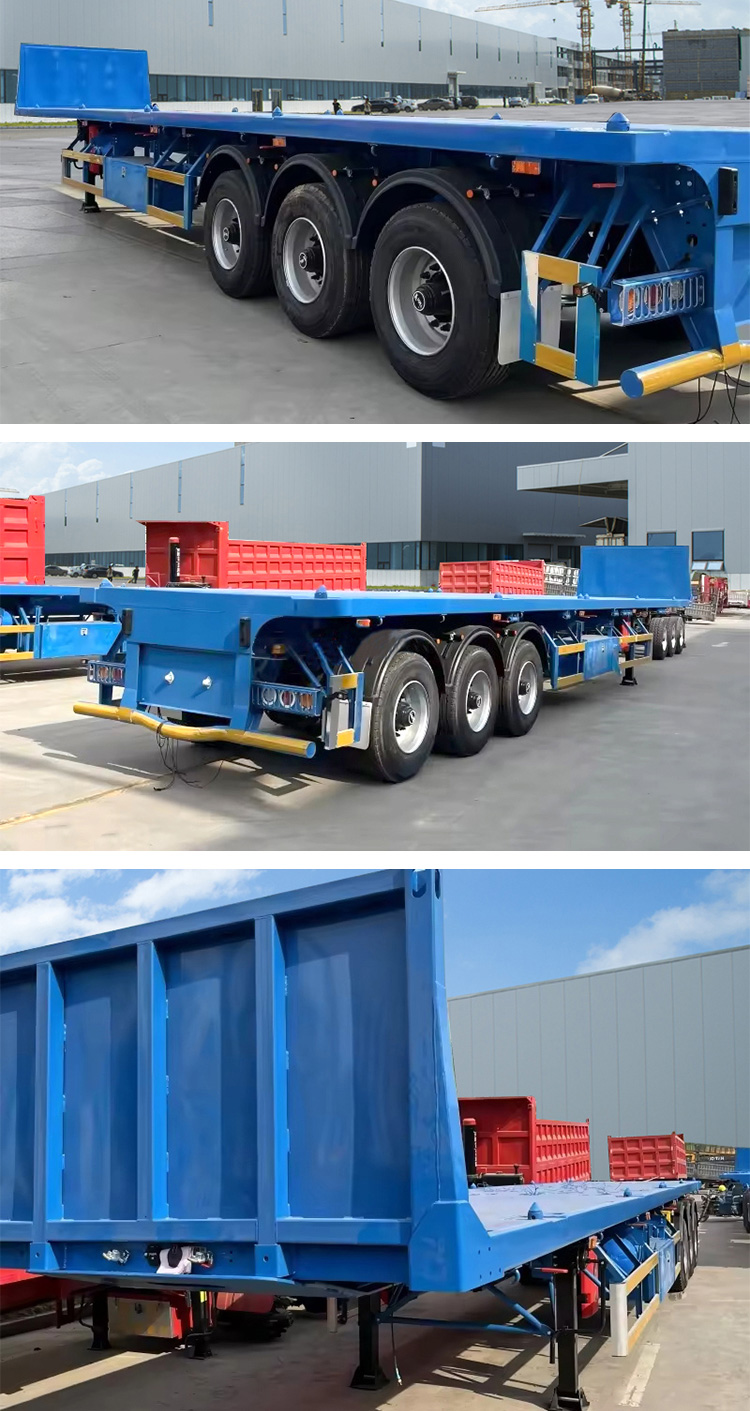

Detailed Pictures:
FAQ
What are the main uses of a flatbed semi-trailer?
Flatbed semi-trailers are suitable for transporting various large equipment, heavy machinery, steel, building materials, and other goods. Their flat cargo deck design facilitates easy loading and unloading, making them a versatile vehicle in logistics transportation.
What is the load capacity of a flatbed semi-trailer?
Our flatbed semi-trailers are made of high-strength steel with a maximum load capacity of up to 60 tons, easily meeting the transportation needs of most heavy goods.
What is the body material of a flatbed semi-trailer?
The body is primarily made of high-strength steel, offering excellent compressive strength and durability. The cargo deck surface is treated with anti-slip processing to ensure the stability and safety of goods during transportation.
Is a flatbed semi-trailer suitable for long-distance transportation?
Yes, our flatbed semi-trailers undergo rigorous load and fatigue testing, ensuring outstanding stability and safety during long-distance transportation. Additionally, the vehicles feature advanced anti-rust treatment technology, effectively extending their service life.
What should I do if there is a quality issue with the flatbed semi-trailer?
We offer a lifetime warranty on the beam and use top-tier domestic and international brands for other components. During the warranty period, any quality issues caused by manufacturing defects will be addressed with free repairs or replacements. Our after-sales team is available 24/7 to provide technical support whenever needed.
