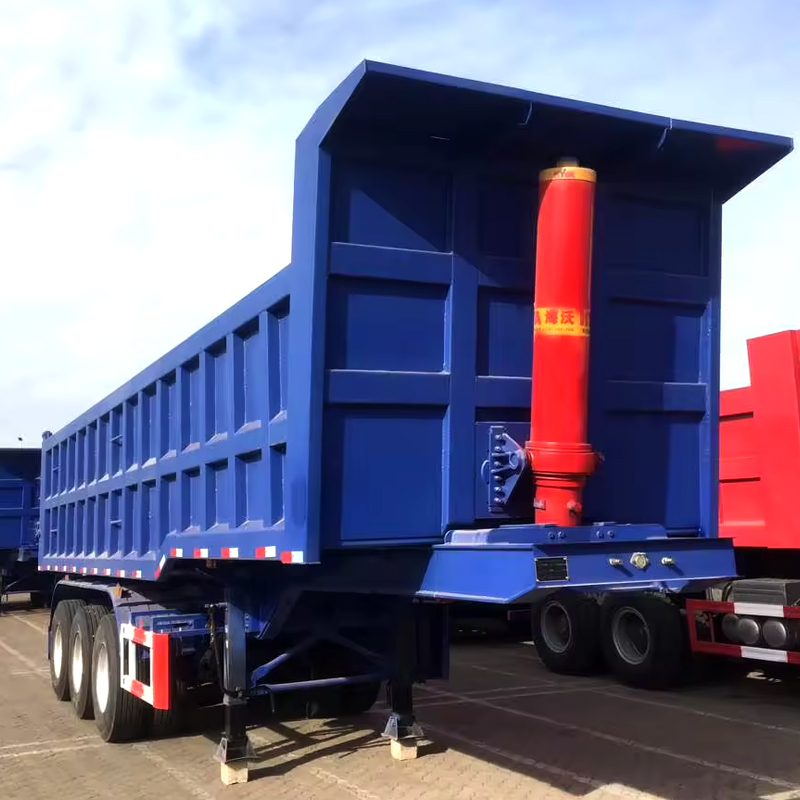

3 Axle Rear Tipper Dump Semi Trailer
3 axle tipper trailers are essential in the transportation industry due to their high efficiency and low operating costs. 3 axle tipper trailers are particularly effective for medium and long-distance hauls, accommodating a wide variety of goods. These 3 axle tipper trailers can be easily paired with various tractor brands and models to create efficient car trains, making hydraulic dump trailers the preferred choice for transporting materials such as sand, gravel, and coal.
The 3 axles rear dump semi trailer features a square-shaped bucket, specifically designed for loading stone minerals. The bucekt's bottom is reinforced to a thickness of 12mm, while the sides are 10mm thick, providing enhanced durability for heavy-duty loading.
We offer customization options for our 3 axles rear dump semi trailers, tailoring the design and weight specifications to meet your specific requirements.
Parameter:
Product Name | Side Dump Semi Trailer |
Outside Dimension(L*W*H) (mm) | 10000-14000*2550*2900mm (customizable) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Tare Weight | 7-9 Tons |
Main Beam | Q345B manganese plates, automatic submerged arc welded |
Upper:16mm, Lower:16mm, Mid web:8mm | |
The height of beam:500mm, | |
Floor | Steel sheet 4mm thickness or diamond plate |
Tyre Specifications | 11.00R20/12R22.5 |
Rim | 8.0/9.0*12/16 pieces |
13 Tons Fuwa / BPW/JOZOTG/Other | |
Leaf-spring | 90mm*13/16mm*10 pieces |
Suspension | Mechanical/ Air suspension |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | 28000 kg,JOST |
Spare Wheel Carrier | One set of spare wheel carrier |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | Steel/aluminum(1+0.5m) |

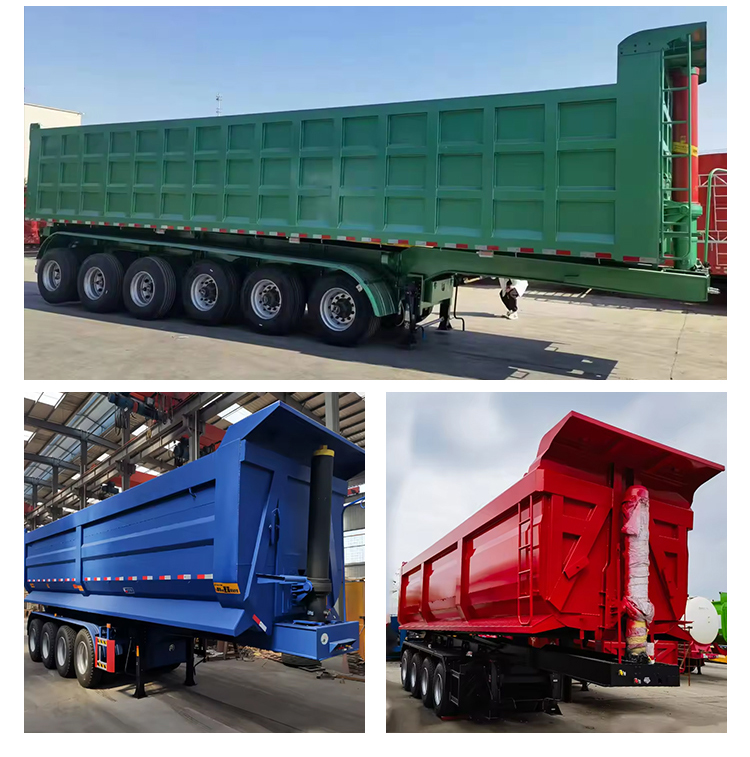

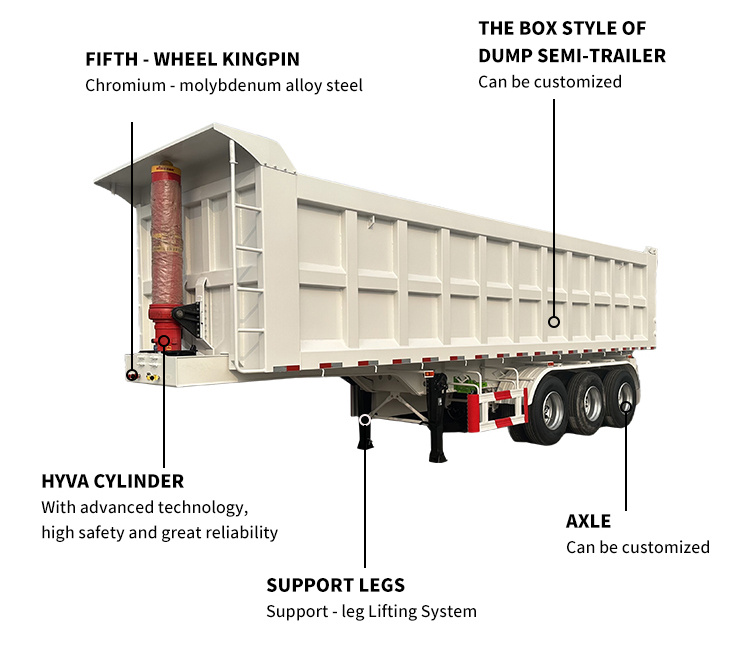

Detailed Pictures:
FAQ
What types of cargo are rear-discharge semi-trailers suitable for?
Rear-discharge semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, and grain. Their rear-discharge design allows for quick unloading, significantly improving work efficiency, making them a reliable assistant for construction sites and logistics transportation!
How efficient is the unloading process of rear-discharge semi-trailers?
Our rear-discharge semi-trailers are equipped with a hydraulic rear-discharge system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.
What is the load capacity of rear-discharge semi-trailers?
Rear-discharge semi-trailers are made of high-strength steel and have a maximum load capacity of 80 tons, making them capable of handling heavy bulk materials with ease and ensuring safe and reliable transportation every time.
Are rear-discharge semi-trailers suitable for use in harsh environments?
Absolutely! Our rear-discharge semi-trailers feature anti-rust treatment and reinforced design, enabling them to operate stably in harsh environments over the long term. Whether on construction sites or in mining areas, they deliver excellent performance.
How is after-sales service handled if issues arise with rear-discharge semi-trailers?
We offer a lifetime warranty on the main beam and a lifetime warranty on the hydraulic system. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
